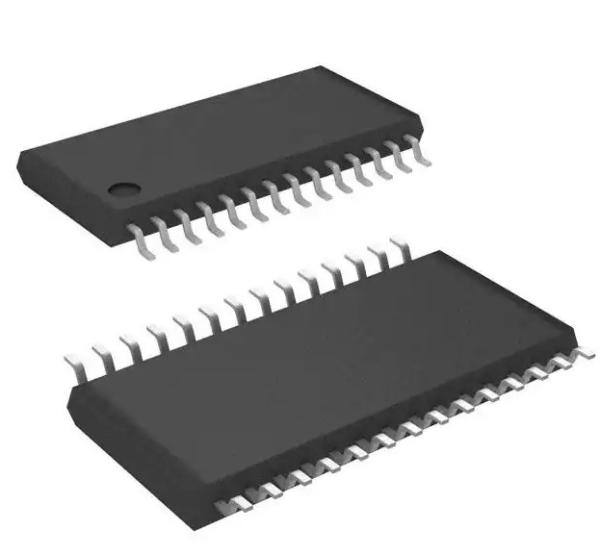

S9S08SL8F1MTLR NXP Semi Conductor 9S08 UC W/ 8K 0.25UM SGF / REEL

Product Categories

Sunbeam Electronics (Hong Kong) Limited

Contact Now

Ask Lasest Price
Brand Name :	NXP
Model Number :	S9S08SL8F1MTLR
Certification :	8542310001
Price :	contact sales for updated price
Delivery Time :	2 weeks
Payment Terms :	T/T
Supply Ability :	1000+

Add to Cart

S9S08SL8F1MTLR NXP 9S08 UC W/ 8K 0.25UM SGF / REEL

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Yes
Family Name	S08
Instruction Set Architecture	CISC
Device Core	S08
Core Architecture	S08
Maximum CPU Frequency (MHz)	40
Maximum Clock Rate (MHz)	40
Data Bus Width (bit)	8
Program Memory Type	Flash
Program Memory Size	8KB
RAM Size	512B
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	I2C/SCI/SPI
Number of I/Os	22
No. of Timers	2
PWM	4
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Minimum Operating Supply Voltage (V)	2.7
Typical Operating Supply Voltage (V)	3.3\|5
Maximum Operating Supply Voltage (V)	5.5
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Supplier Temperature Grade	Automotive
Packaging	Tape and Reel
Pin Count	28
Standard Package Name	SOP
Supplier Package	TSSOP
Mounting	Surface Mount
Package Height	1.05(Max)
Package Length	9.8(Max)
Package Width	4.5(Max)
PCB changed	28
Lead Shape	Gull-wing
